PLT1000
GUOXING
| Size: | |
|---|---|
| Load Weight: | |
| Max Speed: | |
| Application: | |
| Quantity: | |
Watertight material, structure and components and cross-country capacity
It can go any place where it is needed while loading equipment can weight up to 100KG
Equipped with Christie+Matilda four-wheel balance suspension
The product can adapt itself to heavy load and vibration reduction
The product can be widely used for robot movement solutions in complex environment.

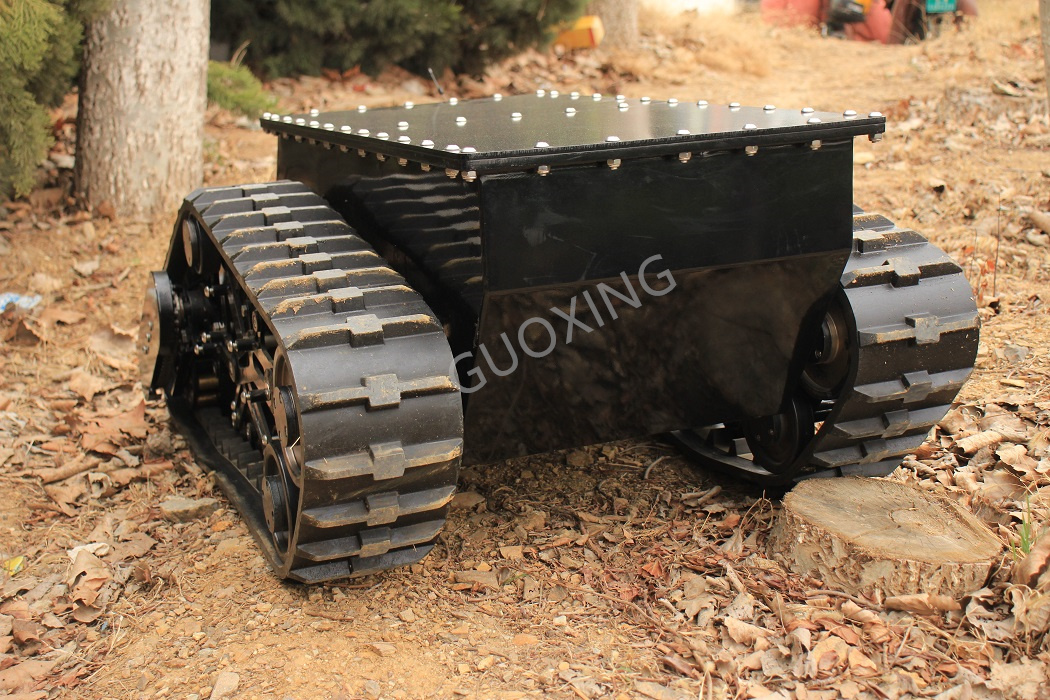

Outdoor Heavy Duty All Terrain Cross-country Waterproof Tracked Robot Chassis for Military/Patrol Inspection/Reconnaissance
Large development platform
IP66 Watertight design
Large support area, small sinking degree
Suitable for soft and muddy ground
Excellent cross-country
Turn in place
Greater traction pull.
40 degree climbing ability
Able to climb slopes, stairs & surmounting obstacles
Stainless steel vehicle , solid & durable
Heavy load duty 100kgs
Customize a variety of advanced operation modes, provide motion control CAN protocol, and support secondary development.
Large space platform is reserved for quick building top load(sensing, industrial control, routing, camera, etc)
Supports customized design of sensor AI profile bracket.
Widely used for the development of special robots such as
Patrol inspection
Exploration
Rescue
Explosive disposal
Special shooting
Special transportation
| Model | PLT1000 | PKT1200 |
| Dimensions | 1100*800*460mm | 1240*930*420mm |
| Interior Size | 280*300*300mm | 570*440*200mm |
| Self Weight | 170KGS | 268KGS |
| Load Weight | 100KGS | 100KGS |
| Height of Chassis | 120mm | 160mm |
| Rated Torque | 82NM | 163NM |
| Body Material | Stainless Steel | |
| Max Angle of climbing | 40 Degrees(Able to climb stairs) | |
| Operating Speed | 1.6m/s | |
| Max Obstacle | 180mm | 150mm |
| Track Material | Quality Rubber embed with with Kevlar fiber | |
| Suspension System | Christie and Matilda four wheel balance version | Christie Suspension |
| Vibration Reduction | 6 Independent vibration absorbers on both sides | |
| Protection Grade | IP66(Optional IP67) | |
| Motor | 48V DC motor | |
| Product Application | Fire Fighting,EOD,Patrol Inspection,Detection,Wading | |
Military case
Customized case
Customized case
Customized case
1: Tell us what is the purpose for the purchase.
2: Tell us your requirements for the robot platform, such as load weight, obstacle-surmount, and other special requirements.
3: Tell us the quantity for the purchase.
4: Just feel free to contact us!
