Safari-138T
GUOXING
| Size: | |
|---|---|
| Load Weight: | |
| Max Speed: | |
| Application: | |
| Quantity: | |

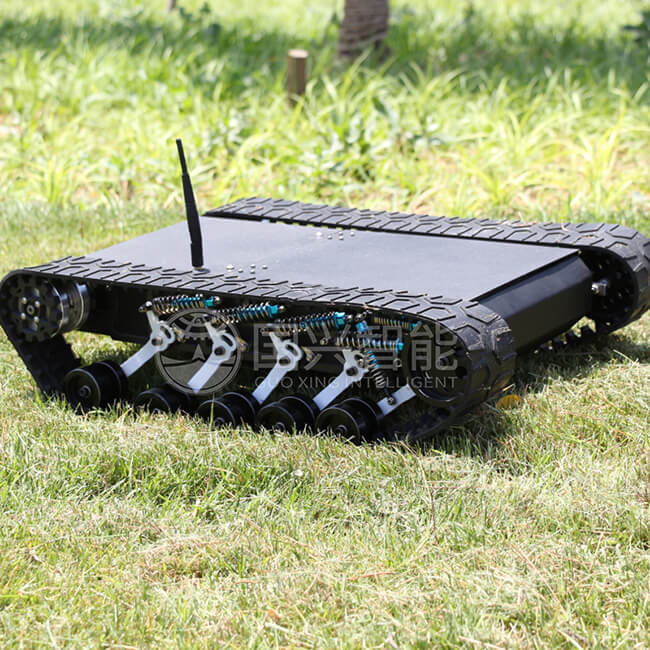

Safari-138T Crawler Robot Chassis is born for steadiness, which can satisfy high requirements for cross-country and steady properties of minitype investigation robots.
12 damping shock absorbers and unique design of interior and exterior patterns make the chassis smoother and steadier while keeping the grip.
Furthermore, its vibration journey lists top among the same series of products,especially suitable for robots loading various cameras.
138T can customize a variety of advanced operation modes, provide motion control CAN protocol, and support secondary development. Widely used for the development of special robots such as
Patrol inspection
Exploration
Rescue
Special shooting
Special transportation
| Item | Data | Item | Data |
| Body Material | Carbon Steel | Dimension | 610*450*195 |
| Track Material | Rubber+fiber | Self Weight | 24KG |
| Motor | 24V Brushless DC Motor | Load Weight | 20KG |
| Suspension System | Christie Suspension | Height of Chassis | 90mm |
| Vibration Reduction | 12 Absorbers | Rated Torque | 8NM |
| Surface Treatment | Painting | Speed | 0~1.2m/s |
| Max Obstacle | 50mm | Max Angle of Climbing | 30 Degrees |
How to buy a best suitable robot platform for your project?
1: Tell us what is the purpose for the purchase.
2: Tell us your requirements for the robot platform, such as load weight, obstacle-surmount, and other special requirements.
3: Tell us the quantity for the purchase.
4: Just feel free to contact us!
