RXR-M40D-880T
GUOXING
| Size: | |
|---|---|
| Water Range: | |
| Picture Transmission: | |
| Protection Grade: | |
| Control Distance: | |
| Quantity: | |

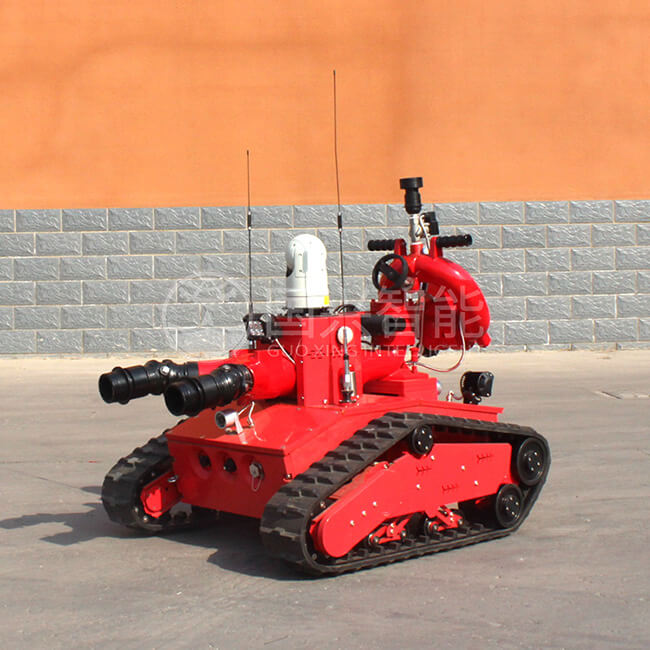

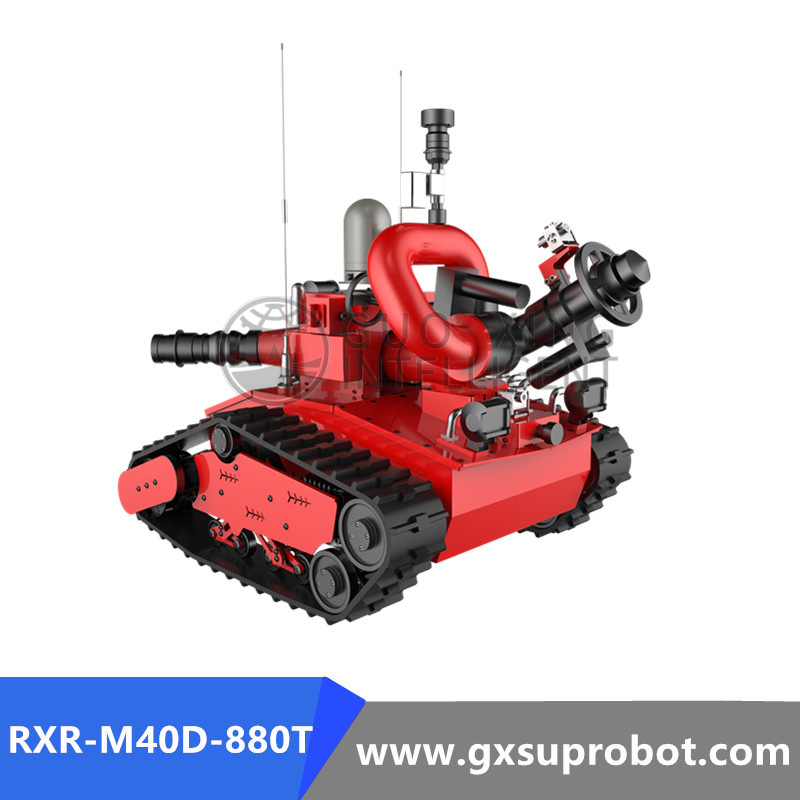

Introducing our revolutionary firefighting robot – the perfect solution for hazardous situations where human intervention is too risky. Our firefighting robot can enter areas that are prone to fire, explosion, toxic fumes, lack of oxygen, and thick smoke, ensuring the safety of firefighting personnel. With its simple yet sturdy design, our robot is equipped with a high-power DC motor that makes it easy to overcome obstacles and navigate through challenging terrain.
Our firefighting robot is ideal for use in a variety of industries, including petrochemicals, oil tank areas, large warehouses, buildings, and other high-temperature, radiation-prone, and hazardous environments. It is also perfect for extinguishing fires, cooling down hotspots, and decontaminating chemical spills. Our robot is the perfect solution for enterprises that produce and store hazardous chemicals.
Invest in our firefighting robot today and make your workplace safer for all your employees. With its advanced features and reliable performance, our robot is the ultimate firefighting solution for any hazardous situation.
Large supporting area and track grounding length.
Suitable for all terrains
Turning radius is very small
Obstacle Crossing and Stairs Climbing
Stainless steel MOC which is strong and durable
Waterproof design IP67
Wireless operation control
Double hoses supply, large flow
· High Strength Tracked Robot Chassis
· 40L/S, Water/Foam Fire Monitor
· 360° PTZ Camera
· Anti-capsizing,Anti-collision,Self-cooling
· Sound and Light Alarming
· Air Detection/1 Air
· Remote Operation Box
| Item | Specs | |
| Robot Chasis | Motor | 48V DC Motors |
| Working Temperature | -20℃~60℃ | |
| Suspension | Christie | |
| Rated Torque | 110nm | |
| Rated Power | 880W*2 | |
| Battery | 48V 60AH | |
| Speed | 0-1.2m/s | |
| Max Obstacle Surmount | 125mm | |
| Max Slope Climb | 35° | |
| Wireless Operation | Remote Controller | |
| Wireless Operation Distance | 500M | |
| Working Time | 3h | |
| Size | Outline Size | 1200*900*900mm |
| Height above Ground | 135mm | |
| Track Width | 150mm | |
| Track Grounding Length | 725mm | |
| Weight | Self Weight | 230kg |
| Load Weight | 100kg | |
| MOC | Wheels | Aluminum Alloys |
| Body | Carbon Steel | |
| Track | Quality Rubber Embeded with Kevlar Fiber | |
| Surface Treatment | Plastic Coated/Painting | |
| Fire Monitor | Model | PSKD40 |
| Working Pressure | 0.8Mpa | |
| Pressure Range | 0.5～1.0Mpa | |
| Water Range | Water≥65m Water/Foam≥60m） | |
| Max Foaming Angle | 120° | |
| Pitch Angle | +30～+70° | |
| Self-rotation | Yes | |
